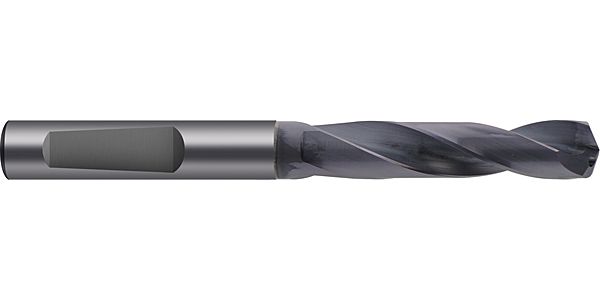

TS-Drills with internal cooling

web thinning ≥ Ø 3.000 • facet point grind • main cutting edge form straight • optimised cutting geometry
  • Connection code machine side: DIN 6535-HE
    Connection code machine side: DIN 6535-HE
    Connection code machine side: DIN 6535-HE
  • Cutting depth: 3xD
    Cutting depth: 3xD
    Cutting depth: 3xD
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: m7
    Tolerance on Ø: m7
    Tolerance on Ø: m7
  • Internal cooling: with
    Internal cooling: with
    Internal cooling: with
  • Standard: DIN 6537K
    Standard: DIN 6537K
    Standard: DIN 6537K
  • Surface: AlTiN nano
    Surface: AlTiN nano
    Surface: AlTiN nano
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: TS 100 INOX
    Type: TS 100 INOX
    Type: TS 100 INOX
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
89550
stainless/acid-/heat-resistant steels • Titanium and Titanium alloys • Inconel, Hastelloy, Monel
Available in many variants
