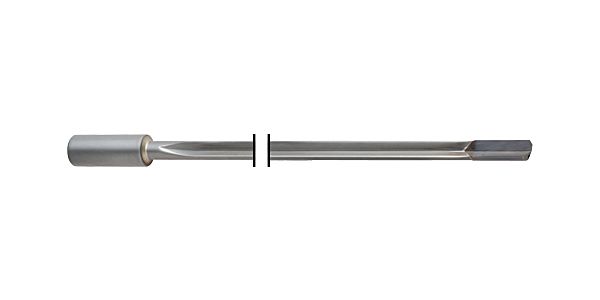

Single-fluted gun drills E 80
drilling depth up to 40xD • head form G • for alloyed and high alloyed steels
-
Connection code machine side: DIN 6535-HA -
Cutting depth: 40xD -
Tolerance on Ø: h5 -
Internal cooling: with -
Standard: Company std. -
Surface: TiCN -
Cutting direction: right-hand -
Type: TLB E 80 -
Tool material: Carbide
SKU
89516
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
