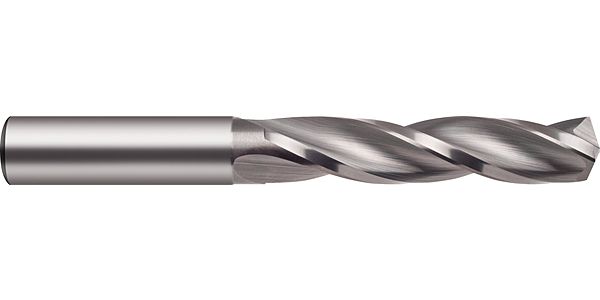

TS-Drills, 3-fluted

web thinning ≥ Ø 3.000 • facet point grind • for holes with high alignment accuracy • very good surface quality of hole • suitable for interrupted cutting
  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Cutting depth: 5xD
    Cutting depth: 5xD
    Cutting depth: 5xD
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: h7
    Tolerance on Ø: h7
    Tolerance on Ø: h7
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: DIN 6539
    Standard: DIN 6539
    Standard: DIN 6539
  • Surface: bright
    Surface: bright
    Surface: bright
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: TS 3 G
    Type: TS 3 G
    Type: TS 3 G
  • Point angle: 150
    Point angle: 150
    Point angle: 150
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
89239
cast materials • Al cast alloys
Available in many variants
