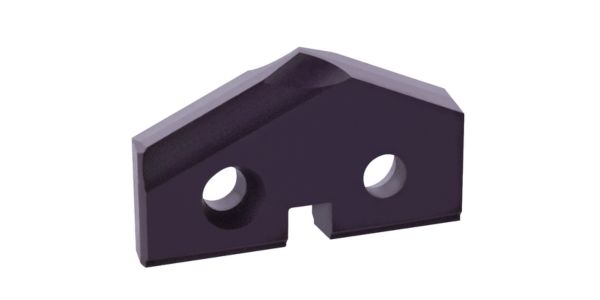

Interchangeable inserts

Catalog-No.

86702

web thinning ≥ Ø 10.000 • Interchangeable insert without chip breaker grooves. For materials above 600 N/mm². For universal application.
point angle:
≤ Ø 25.4 mm = 135°
> Ø 25.4 mm = 132°
with chamfer (see "Application Recommendations Multiplex"/Technichal Section)

P	M	K	N	S	H

ISO code

P	Steel, high-alloyed steel
M	Stainless steel
K	Grey cast iron, spher, graphite/mall. cast iron
N	Aluminium and other non-ferrous metals
S	Special, super and titanium alloys
H	Hardened steel and chilled cast iron

On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
