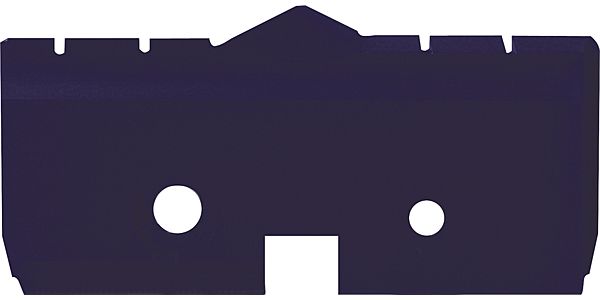

Interchangeable inserts
web thinning ≥ Ø 10.000 • Interchangeable insert with chip breakers. For universal application.
Point angle of the centring tip:
≤ Ø 35.0 mm = 120°
> Ø 35.0 mm = 140°
Point angle of the centring tip:
≤ Ø 35.0 mm = 120°
> Ø 35.0 mm = 140°
-
Ø-Thinning: 3.000 -
Tolerance on Ø: -0,02/-0,07 -
Standard: Company std. -
Surface: AlTiN -
Cutting direction: right-hand -
Point angle: 180 -
Tool material: HSS-E-PM -
Identification (Article No.): New
SKU
86611
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Item is not available
Available in many variants
