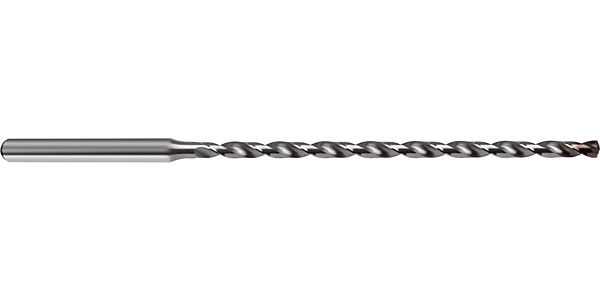

Kleinstbohrer TS 100 U micro

facet point grind • main cutting edge form straight • with cutting lip honing
  • Connection code machine side: ~DIN 6535-HA
    Connection code machine side: ~DIN 6535-HA
    Connection code machine side: ~DIN 6535-HA
  • Cutting depth: 20xD
    Cutting depth: 20xD
    Cutting depth: 20xD
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: h7
    Tolerance on Ø: h7
    Tolerance on Ø: h7
  • Internal cooling: with
    Internal cooling: with
    Internal cooling: with
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: TiAlN
    Surface: TiAlN
    Surface: TiAlN
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: TS 100 U micro
    Type: TS 100 U micro
    Type: TS 100 U micro
  • Point angle: 135
    Point angle: 135
    Point angle: 135
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
  • Identification (Article No.): New
    Identification (Article No.): New
    Identification (Article No.): New
SKU
86410
structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • stainless steels • cast materials
Available in many variants
