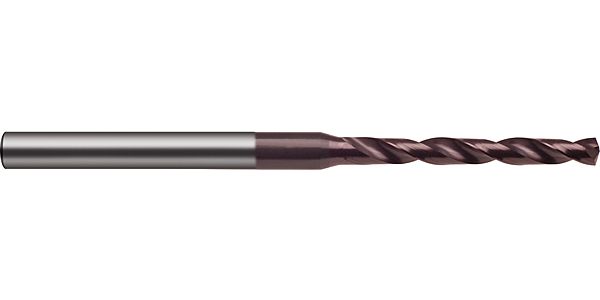

Micro-precision drills

web thinning ≥ Ø 0.800 • facet point grind • uniform 3 mm shank • uniform 38 mm total length
  • Connection code machine side: straight shank
    Connection code machine side: straight shank
    Connection code machine side: straight shank
  • Cutting depth: GL38
    Cutting depth: GL38
    Cutting depth: GL38
  • Ø-Thinning: 3.000
    Ø-Thinning: 3.000
    Ø-Thinning: 3.000
  • Tolerance on Ø: h7
    Tolerance on Ø: h7
    Tolerance on Ø: h7
  • Internal cooling: without
    Internal cooling: without
    Internal cooling: without
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
  • Surface: TiAlN
    Surface: TiAlN
    Surface: TiAlN
  • Cutting direction: right-hand
    Cutting direction: right-hand
    Cutting direction: right-hand
  • Type: TS 100 U micro
    Type: TS 100 U micro
    Type: TS 100 U micro
  • Point angle: 140
    Point angle: 140
    Point angle: 140
  • Tool material: Solid carbide
    Tool material: Solid carbide
    Tool material: Solid carbide
SKU
86402
structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • cast materials • machining of circuit boards
Available in many variants
